| MODEL |

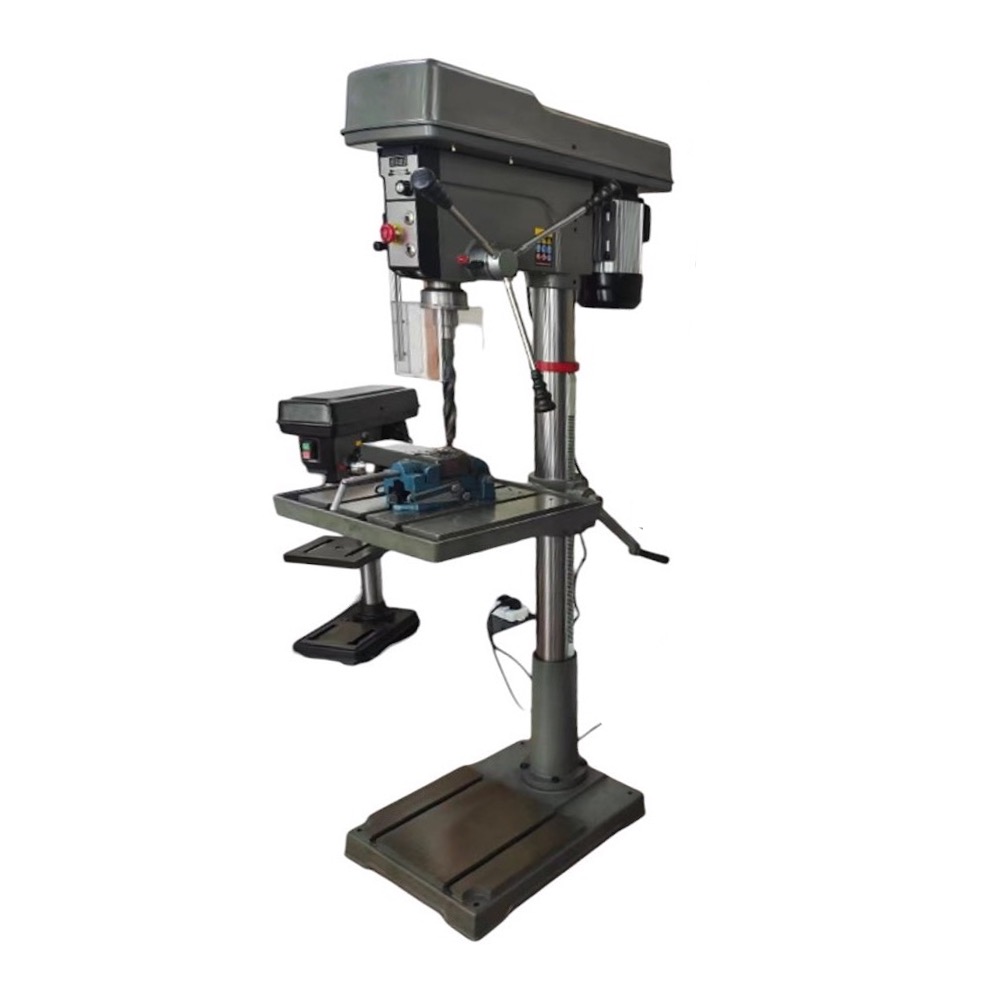

DP51020F-VS |
| Drilling Capacity (mm) |
32 |
| Chuck Capacity (mm) |
16 |
| Swing (mm) |
510 |
| Distance from spindle to column |
255 |
| Spindle Taper |
MT3 |
| Speed rpm (50HZ) |
2(0-700/0-3000) |
| Spindle Travel |
120 |
| Column Diametre (mm) |
92 |
| Max. distance from spindle to table |
680 |
| Max. distance from spindle to base |
1170 |
| Base Size (mm) |
575 x 450 |
| Table Size (mm) |
475*425 |
| Table Tilt |
yes – 45/45 |
| CE Chuck Guard |
yes |
| LED Light |
yes |
| Laser Light |
yes |
| Converter (vector control) |
yes |
| Motor (w)/S1 |
1500 |
| Height (mm) |
1690 |
| NW/GW (kg) |
122/127 |
| Packing Size (mm) |
1450*655*390 |
| Quantity for 20GP |
72 |
